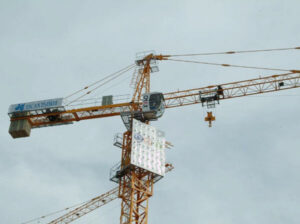

Technical Sheet for TC5013B
| Free standing height (m) | 41.5 | ||
| Max height with attachment (m) | 141.5 | ||
| Working range can be adjusted（m） | 44、50 | ||
| Min working range（m） | 2.5 | ||
| Max lifting capacity（t） | 6 | ||
| Tip load @ 50m（t） | 1.3 | ||
| Hoist mechanism | Falls | 2 | 4 |
| Lifting capacity（t） | 1.5-3 | 3-6 | |
| Speed（m/min） | 0-80 | 0-40 | |
| Motor | YZRDWF225M-4/8-24/24KW | ||
| Trolleying mechanism | Speed（m/min） | 12/27/53 | |
| Motor | YZTDE132L-4/8/16-3.3/2.2/1.1KW | ||
| Slewing mechanism | Speed（r/min） | 0-0.6 | |
| Motor | YZR132M2-6-3.7KW×2 | ||
| Climbing speed（m/min） | 0.58 | ||
| Counterweight（t） | 44m jib length | 50m jib length | |
| 12 | 13.05 | ||
| Mast section size（L×W×H）m | 1.6×1.6×2.5m ( seamless tube type ) | ||
| Working temperature | -40－+60℃ | ||
| Total power (KW) | 37 | ||
| Power supply requirement (KVA) | 170KVA for generator | ||
| Cable type ( within 40 meters from site power source to lower electric box of tower crane ) | 50mm2（3+2, 5 cores） | ||
| Startup voltage & current | 380V×95%=361V 170A | ||
| Rated working voltage & current | 380V 108A | ||
Loading diagram： 50m jib length：
| R | 2.5-15.5 | 17 | 20 | 23 | 26 | 28.1 | 29 | 35 | 41 | 44 | 50 |
| a=2(t) | 3.00 | 2.91 | 2.32 | 1.90 | 1.73 | 1.33 | |||||
| a=4(t) | 6.00 | 5.40 | 4.48 | 3.80 | 3.29 | 2.99 | 2.88 | 2.29 | 1.87 | 1.70 | 1.30 |
44m jib length：
| R | 2.5-15.7 | 17 | 20 | 23 | 26 | 28.7 | 29 | 32 | 35 | 38 | 44 |
| a=2(t) | 3.00 | 2.97 | 2.63 | 2.36 | 2.13 | 1.73 | |||||
| a=4(t) | 6.00 | 5.49 | 4.56 | 3.87 | 3.35 | 2.97 | 2.94 | 2.60 | 2.33 | 2.10 | 1.70 |
