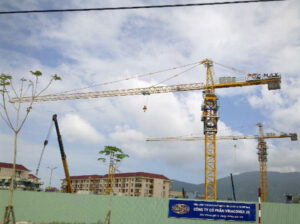

Technical Sheet for TC5013A
| Free standing height (m) | 40 | ||
| Max height with attachment (m) | 121 | ||
| Working range can be adjusted（m） | 44、50 | ||
| Min working range（m） | 2.5 | ||
| Max lifting capacity（t） | 6 | ||
| Tip load @ 50m（t） | 1.3 | ||
| Hoist mechanism | Falls | 2 | 4 |
| Lifting capacity（t） | 1.3-3 | 3-6 | |
| Speed（m/min） | 9/38/80 | 4.5/19/38 | |
| Motor | YZTD225L2-4/8/32-24/24/5.4KW | ||
| Trolleying mechanism | Speed（m/min） | 20/40 | |
| Motor | YZTDE132S-4/8-3.3/2.2KW | ||
| Slewing mechanism | Speed（r/min） | 0.6 | |
| Motor | YZR132M2-6-3.7KW | ||
| Climbing speed（m/min） | 0.5 | ||
| Counterweight（t） | 44m jib length | 50m jib length | |
| 9.5 | 11 | ||
| Mast section size（L×W×H）m | 1.6×1.6×2.5m ( Panel type ) | ||
| Working temperature | -40－+60℃ | ||
| Total power (KW) | 34 | ||
| Power supply requirement (KVA) | 180KVA for generator | ||
| Cable type ( within 40 meters from site power source to lower electric box of tower crane ) | 50mm2（3+2, 5 cores） | ||
| Startup voltage & current | 380V×95%=361V 285A | ||
| Rated working voltage & current | 380V 93A | ||
Loading diagram： 50m jib length：
| R | 2.5-14.04 | 16 | 18 | 20 | 22 | 25.8 | 30 | 36 | 40 | 44 | 50 |
| a=2(t) | 3.00 | 2.50 | 2.00 | 1.75 | 1.54 | 1.30 | |||||
| a=4(t) | 6.00 | 5.16 | 4.50 | 3.97 | 3.55 | 2.90 | 2.43 | 1.93 | 1.68 | 1.47 | 1.23 |
44m jib length：
| R | 2.5-14.4 | 16 | 18 | 20 | 22 | 26.5 | 30 | 34 | 38 | 40 | 44 |
| a=2(t) | 3.00 | 2.59 | 2.22 | 1.93 | 1.82 | 1.60 | |||||
| a=4(t) | 6.00 | 5.32 | 4.64 | 4.10 | 3.66 | 3.00 | 2.52 | 2.15 | 1.86 | 1.74 | 1.53 |
