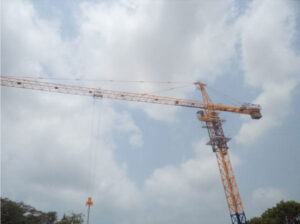

Topkit Tower Crane TC5516
Technical Sheet for TC5516
| Free standing height (m) | 44 | ||||
| Max height with attachment (m) | 150（200） | ||||
| Working range can be adjusted（m） | 45、50、55 | ||||
| Min working range（m） | 2.5 | ||||
| Max lifting capacity（t） | 8 | ||||
| Tip load @ 55m（t） | 1.6 | ||||
| Hoist mechanism | Falls | 2 | 4 | ||
| Lifting capacity（t） | 0－2 | 0－4 | 0－4 | 0－8 | |
| Speed（m/min） | 0－80 | 0－40 | 0－40 | 0－20 | |
| Motor | YZRWFc250M-4/8 30/30KW | ||||
| Trolleying mechanism | Speed（m/min） | 12/27/53 | |||
| Motor | YZTDE132L-4 /8/16 3.3/2.2/1.1KW | ||||
| Slewing mechanism | Speed（r/min） | 0～0.6 | |||
| Motor | YZR132M2-6-3.7KW×2 | ||||
| Climbing speed（m/min） | 0.5 | ||||
| Counterweight（t） | 17.6 | ||||
| Mast section size（L×W×H）m | 1.6×1.6×3.0 | ||||
| Working temperature | -40－+60℃ | ||||
| Total power (KW) | 42 | ||||
| Power supply requirement (KVA) | 190KVA for generator | ||||
| Cable type ( within 40 meters from site power source to lower electric box of tower crane ) | 50mm2（3+2, 5 cores） | ||||
| Startup voltage & current | 380V×95%=361V 179A | ||||
| Rated working voltage & current | 380V 128A | ||||
Loading diagram： 55m jib length
| R m | 3.1—13.5 | 17 | 22 | 27 | 33 | 37 | 45 | 47 | 50 | 52 | 55 | |
| a=2 | 4t—24.65m | 3.61 | 3 | 2.61 | 2.38 | 1.95 | 1.8 | 1.72 | 1.6 | |||
| a=4 | 8t | 6.2 | 4.62 | 3.41 | 3 | 2.61 | 2.38 | 1.95 | 1.8 | 1.72 | 1.6 | |
50m jib length
| R m | 2.5—15.17 | 19.65 | 22 | 25 | 27.4 | 33 | 38.5 | 42 | 47 | 50 |
| a=2 | 4t—27.6m | 3.22 | 3 | 2.71 | 2.37 | 2.2 | ||||
| a=4 | 8t | 6.2 | 5.53 | 4.76 | 4 | 3.22 | 3 | 2.71 | 2.37 | 2.2 |
45m jib length
| R m | 2.5—15.17 | 22 | 25 | 27.4 | 29.8 | 33 | 38.5 | 40 | 42 | 45 |
| a=2 | 4t | 3.65 | 3.22 | 3 | 2.87 | 2.71 | 2.5 | |||
| a=4 | 8t—15.17m | 5.53 | 4.76 | 4.2 | 3.65 | 3.22 | 3 | 2.87 | 2.71 | 2.5 |
