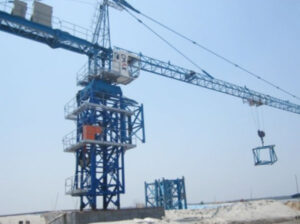

Topkit Tower Crane TC5610
Technical Sheet for TC5610
| Free standing height (m) | 41.5 | ||||
| Max height with attachment (m) | 141.5 | ||||
| Working range can be adjusted（m） | 44、50、56 | ||||
| Min working range（m） | 2.5 | ||||
| Max lifting capacity（t） | 6 | ||||
| Tip load @ 56m（t） | 1 | ||||
| Hoist mechanism | Falls | 2 | 4 | ||
| Lifting capacity（t） | 1.5-3 | 3-6 | |||
| Speed（m/min） | 0-80 | 0-40 | |||
| Motor | YZRDWF225M-4/8-24/24KW | ||||
| Trolleying mechanism | Speed（m/min） | 12/27/53 | |||
| Motor | YZTDE132L-4/8/16-3.3/2.2/1.1KW | ||||
| Slewing mechanism | Speed（r/min） | 0-0.6 | |||
| Motor | YZR132M2-6-3.7KW×2 | ||||
| Climbing speed（m/min） | 0.58 | ||||
| Counterweight（t） | 44m jib length | 50m jib length | 56m jib length | ||
| 12 | 13.05 | 14.1 | |||
| Mast section size（L×W×H）m | 1.6×1.6×2.5m | ||||
| Working temperature | -40－+60℃ | ||||
| Total power (KW) | 37 | ||||
| Power supply requirement (KVA) | 170KVA for generator | ||||
| Cable type ( within 40 meters from site power source to lower electric box of tower crane ) | 50mm2（3+2, 5 cores） | ||||
| Startup voltage & current | 380V×95%=361V 170A | ||||
| Rated working voltage & current | 380V 108A | ||||
Loading diagram： 56m jib length：
| R | 2.5-26.35 | 28 | 30 | 32 | 38 | 44 | 50 | 56 | |||
| a=2(t) | 3.00 | 2.778 | 2.542 | 2.336 | 1.851 | 1.502 | 1.237 | 1.03 | |||
| R | 2.5-14.82 | 16 | 18 | 20 | 22 | 26 | 32 | 38 | 44 | 50 | 56 |
| a=4(t) | 6.00 | 5.478 | 4.757 | 4.187 | 3.725 | 3.022 | 2.306 | 1.821 | 1.472 | 1.207 | 1.00 |
50m jib length：
| R | 2.5-27.6 | 28 | 30 | 36 | 40 | 44 | 50 | ||||
| a=2(t) | 3.00 | 2.946 | 2.698 | 2.124 | 1.839 | 1.607 | 1.330 | ||||
| R | 2.5-15.5 | 18 | 20 | 22 | 26 | 28 | 30 | 36 | 40 | 44 | 50 |
| a=4(t) | 6.00 | 5.023 | 4.426 | 3.941 | 3.203 | 2.916 | 2.668 | 2.094 | 1.809 | 1.577 | 1.30 |
44m jib length：
| R | 2.5-29.05 | 30 | 32 | 36 | 38 | 44 | |||||
| a=2(t) | 3.00 | 2.880 | 2.653 | 2.275 | 2.117 | 1.73 | |||||
| R | 2.5-16.29 | 18 | 20 | 24 | 26 | 28 | 30 | 32 | 36 | 38 | 44 |
| a=4(t) | 6.00 | 5.333 | 4.703 | 3.770 | 3．414 | 3.112 | 2.850 | 2.623 | 2.245 | 2.087 | 1.70 |
